Satellite 1 Dart Launcher

Satellite 1 Dart Launcher


FEATURES

  • Capable of loading and deploying up to 26 Darts, balls or variation
  • The Carrier can be loaded with 4” or 5” Darts including a combination and packer balls if required.
  • Carrier includes individual slots to secure each Dart in storage, Darts are color coded and numbered that are fully visible.
  • Each individual Dart is fully encased and fully protected from the elements.
  • The encased Dart is in a protective thermal interior that shields/limits the outside sub temperatures and prevents moisture issues.

DEPLOYMENT

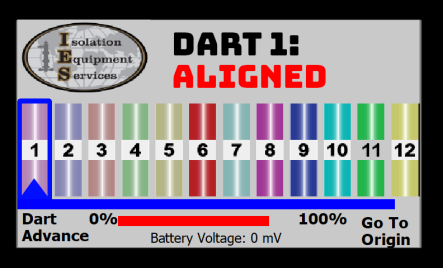

  • The carrier is computer-controlled, automatically and precisely aligning a selected dart with the wellbore, while showing the darts positioning in real-time.
  • System features a triple method of confirming the Dart has travelled to the load chamber destination.
  • The Carrier Drive incorporates a sensor readout in percentages confirms the drive revolutions that the Carrier has travelled to the desired drop spot.
  • A large Spring Loaded locking pin is auto activated at the exact alignment with the Wellbore fully securing the Carrier. In addition, a timer is set that alerts when the predetermined seconds to travel is completed.

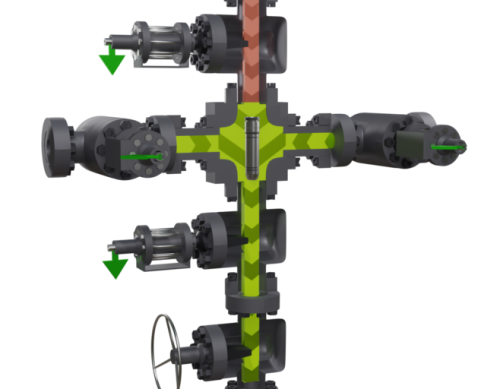

  • As the Dart drops, deployment is confirmed by viewing the Dart drop out of the fully visible translucent tube.
  • The empty tubes continue to the receiving track which are fully visible for further confirmation.

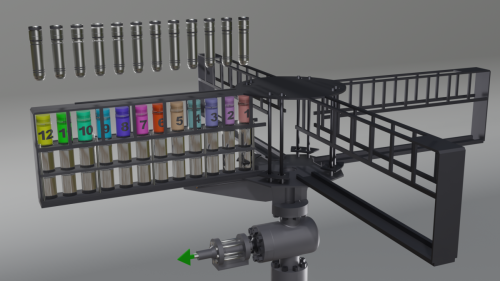

RELOADING

  • Reloading requires mere minutes; the Dart protective tubes remain in position and only the caps are removed
  • Darts are loaded into the tube Carrier and ready to launch
